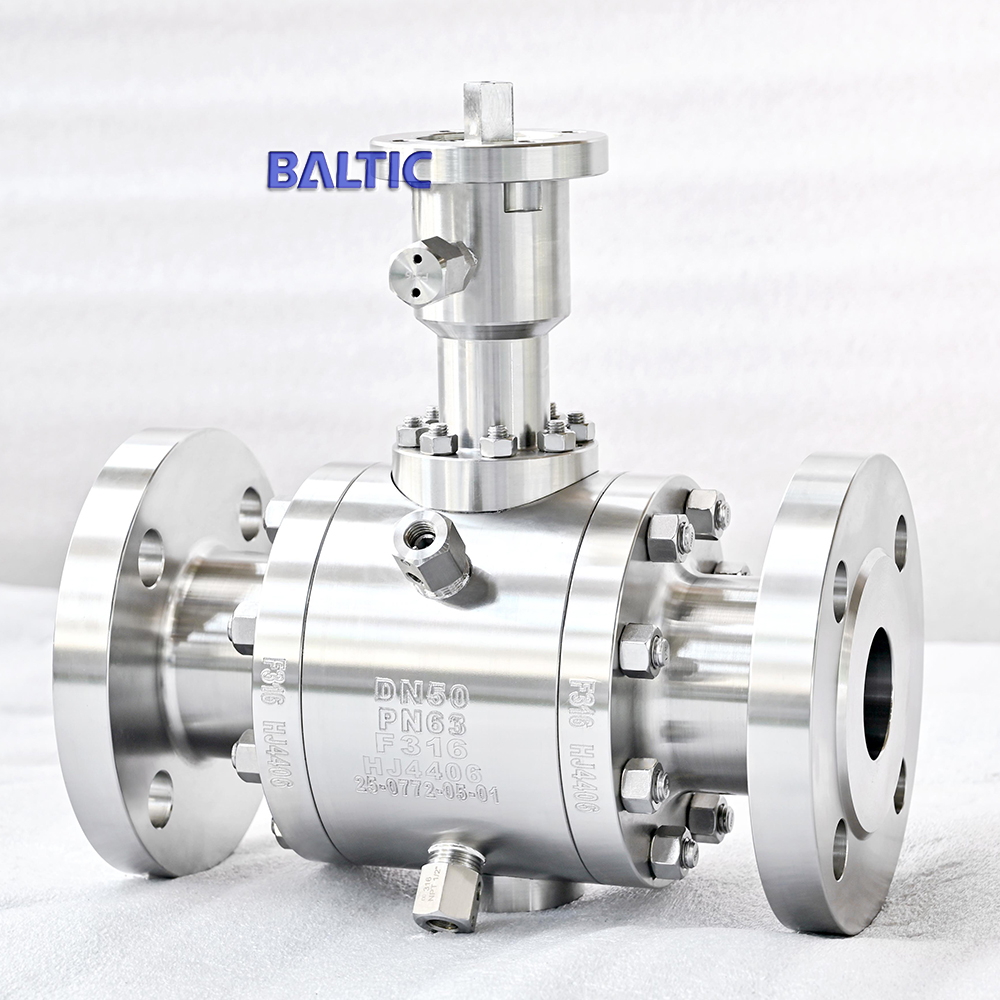

API 6D Ball Valve, Stainless Steel, A182 F316, DN50, PN63, RF

Our ball valve is engineered in accordance with API 6D standards to ensure reliable performance in demanding industrial applications. The valve features a durable ASTM A182 F316 stainless steel body, offering excellent corrosion resistance and long service life in harsh environments. Designed in DN50 (2 inch) size with a PN63 / Class 400 LB pressure rating, it is suitable for high-pressure pipeline systems. The RF flanged ends provide secure and leak-free connections, simplifying installation and maintenance. With precision machining and strict quality control, this ball valve delivers dependable shut-off and smooth operation across oil & gas, chemical, and industrial processing systems. As a leading ball valve manufacturer in China, we provide high-quality valve solutions for global industries.


Tags:

• API 6D Ball Valve
• Stainless Steel Ball Valve
• ASTM A182 F316 Ball Valve
• DN50 Ball Valve
• PN63 Ball Valve

Valve Description:
Ball valve with ISO top flange for later mounting electric actuator.
Design: API 6D.
Body: ASTM A182 F316.
Nominal Size: DN50.
Nominal Class: PN63.
End Connection: RF Flange, EN 1092-B2.
Face to Face: EN 558-1/row 2 = 300mm.
Test and Inspection: EN 12266-1.

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 1/2 - 60 Inch (DN15 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16 - PN420).
Working Temperature: -46°C - +200°C.
