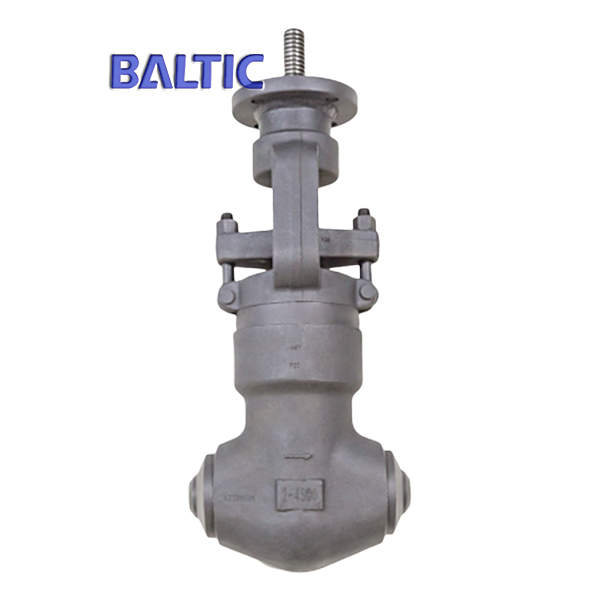

ASTM A182 F22 Forged Globe Valve, 2 Inch, 4500 LB, BW, PSB, API 602
Key Specifications / Features
Model No.: Hits: 299
ASTM Forged Globe Valve Fabricator in China: ASTM A182 F22 Forged Steel Globe Valve, 2 Inch, 4500 LB, BW, PSB, API 602, Bare Stem + Top ISO Flanged.
Request a quote
Share
Tags:
Detail Information
Name: High pressure globe valve, pressure seal bonnet, with bare stem + top ISO flange.
Design: API 602.
Body: ASTM A182 F22.
Nominal size: 2 Inch.
Nominal class: 4500 LB.
End connection: BW.
Face to face: as per manufacture standard.
Test and inspection: API 598.
Technical parameters and characteristics
Design: API 602.
Body: ASTM A182 F22.
Nominal size: 2 Inch.
Nominal class: 4500 LB.
End connection: BW.
Face to face: as per manufacture standard.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Small size globe valve |
| Nominal diameter | 1/4 Inch - 4 Inch |
| Design temp. | -196℃ - 573℃ |
| Design pressure | Class 150 - 4500 |
| Material | Forged carbon steel, Stainless steel, Alloy steel, Bronze |
| Design standard | API 602, BS 5352 |
| Face to face | Manufacture standard, ASME B16.10 |
| Connection end | NPT, SW, BW, Flange |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric |
| Application | Power station, petroleum, chemical engineering |
| Function 1 | bolted bonnet, welded bonnet, pressure seal bonnet |
| Function 2 | plug disc, needle disc |
| Function 3 | full bore, reduce bore |
| Function 4 | Integral flanged ends, welded on flanged ends |
