• API 602 Forged Steel Globe Valve, ASTM A105N, 1 Inch, 900 LB, RF

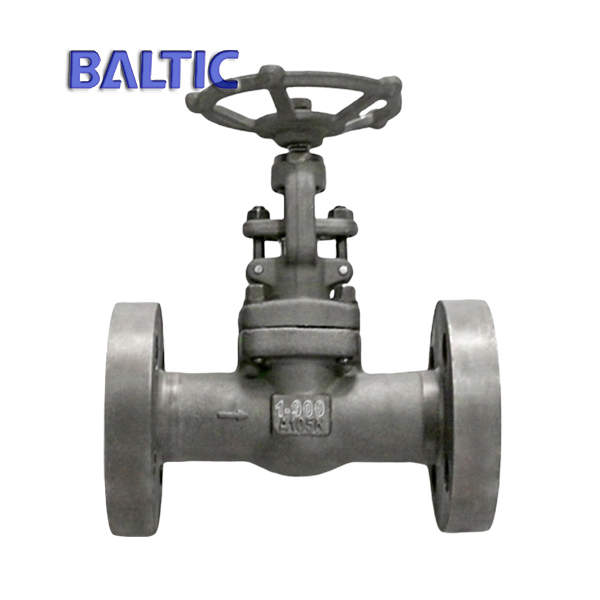

API 602 Forged Steel Globe Valve, ASTM A105N, 1 Inch, 900 LB, RF

API 602 Forged Steel Globe Valve, ASTM A105N, 1 Inch, 900 LB, RF

API 602 Forged Steel Globe Valve, ASTM A105N, 1 Inch, 900 LB, RF

Key Specifications / Features

Model No.: Hits: 85

API 602 Forged Steel Globe Valve Maker in China: API 602 Forged Steel Small Size Globe Valve, ASTM A105N, 1 Inch, 900 LB, Integral Flanged, RF.
Request a quote Share

Next: ASTM A105N Integral Flanged Globe Valve, 3/4 Inch, 600 LB, RF

Previous: Pressure Seal Bonnet Globe Valve, ASTM A105N, 1 Inch, 2500 LB, RF

Detail Information

Name: Small size globe valve, with integral flange.
Design: API 602.
Body: ASTM A105N.
Nominal size: 1 Inch.
Nominal class: 900 LB.
End connection: RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size globe valve
Nominal diameter 1/4 Inch - 4 Inch
Design temp.  -196℃  - 573℃
Design pressure Class 150 - 4500
Material Forged carbon steel, Stainless steel, Alloy steel, Bronze
Design standard API 602, BS 5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, Flange
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, chemical engineering
Function 1 bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 plug disc, needle disc
Function 3 full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
