• 3-PC Aluminum Bronze Ball Valve, C63000, 2 Inch, 800 LB, NPT

3-PC Aluminum Bronze Ball Valve, C63000, 2 Inch, 800 LB, NPT

3-PC Aluminum Bronze Ball Valve, C63000, 2 Inch, 800 LB, NPT

Key Specifications / Features

Model No.: Hits: 22

3-PC Aluminum Bronze Ball Valve Provider: Aluminum Bronze ASTM B150 C63000 Ball Valves with Welded Body, 3PC, API 608, ASME B16.34, 2 Inch, 800 LB, NPT.
Request a quote Share

Detail Information

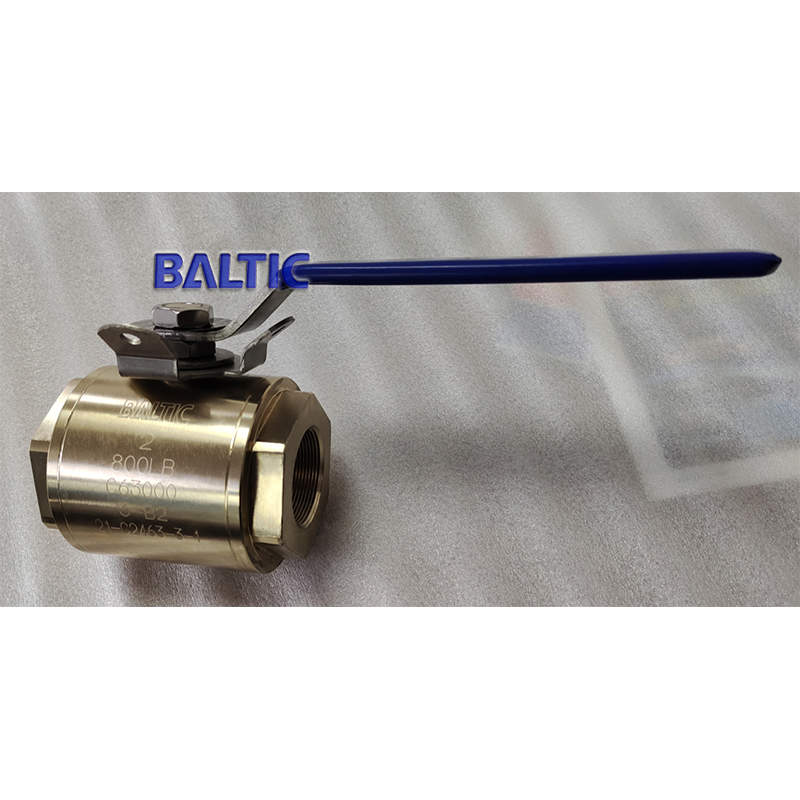

Aluminum bronze Ball valve with a welded body, 3-PC type, welded body

Design: API 608, ASME B16.34.
Body: ASTM B150 C63000.
Nominal size: 2 Inch.
Nominal class: 800 LB.
End Connection: NPT (female threaded) as per ASME B1.20.1.
Face-to-face dimension as per MFG STD = 148MM.
Test and inspection: API 598.

Product Range:
Sizes: 1/2 Inch - 60 Inch (DN15 - DN1500).
Design Pressure: Class 150 - 900 LB, PN10 - PN160.
Design Standards: EEMUA 182, ASME B16.34, API 608, API 6D.
Design Temp.: -29℃ - 260℃.
Body materials: ASTM B148 C95400, C95500, C95800, ASTM B150 C63000, C63200.
End connections: NPT, Flange.
Operation: Hand lever, gearbox, pneumatic.
Applications: for seawater, offshore and marine.
