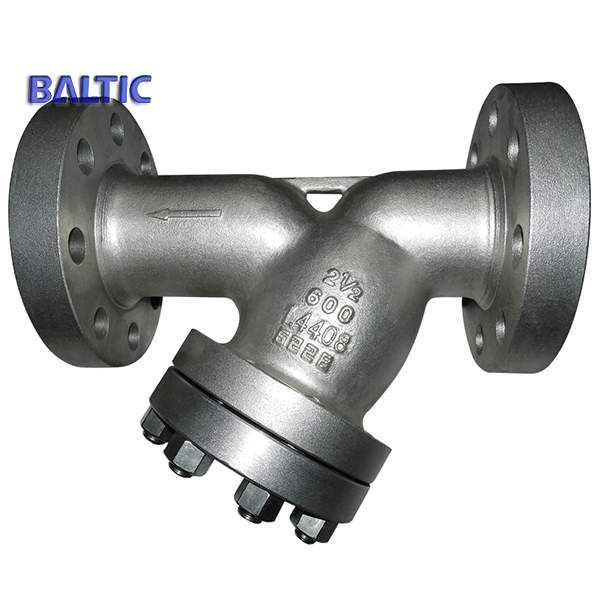

• 1.4408 Y Strainer, 2 1/2 Inch, Class 600 LB, ASME B16.34, RF

1.4408 Y Strainer, 2 1/2 Inch, Class 600 LB, ASME B16.34, RF

1.4408 Y Strainer, 2 1/2 Inch, Class 600 LB, ASME B16.34, RF

1.4408 Y Strainer, 2 1/2 Inch, Class 600 LB, ASME B16.34, RF

Key Specifications / Features

Model No.: Hits: 229

1.4408 Y Strainer Supplier in China: 1.4408 Y Strainer, ASTM A351 CF8M, 1.4408, 2 1/2 Inch, Class 600 LB, ASME B16.34, RF flange, Cast Austenitic Steel.
Request a quote Share

Next: ASME B16.34 Y Strainer, ASTM A216 WCB, 4 Inch, 150 LB, RF Flanged

Previous: ASTM A351 CF8M Y Type Strainer, 2 Inch, Class 150, ASME B16.34, RF

Detail Information

Product name: Y type strainer.
Design: ASME B16.34.
Material: ASTM A351 CF8M, 1.4408.
Nominal size: 2-1/2 Inch.
Nominal pressure: Class 600 LB.
End Connection: RF flange.
Face to face: ASME B16.10.
Test and inspection: API 598.

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -196℃ - +573℃.


Similar Products

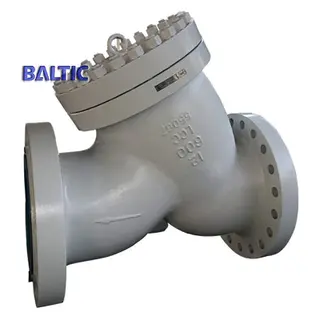

ASTM A352 LCC Y-Strainer, 12 Inch, Class 600, ASME B16.34, RF

ASTM A352 LCC Y-Strainer, 12 Inch, Class 600, ASME B16.34, RF

Request a quote

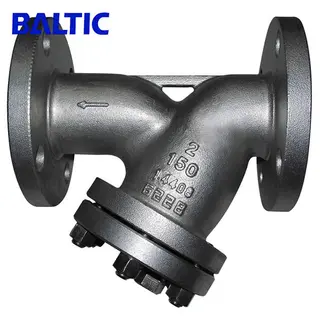

ASTM A351 CF8M Y Type Strainer, 2 Inch, Class 150, ASME B16.34, RF

ASTM A351 CF8M Y Type Strainer, 2 Inch, Class 150, ASME B16.34, RF

Request a quote

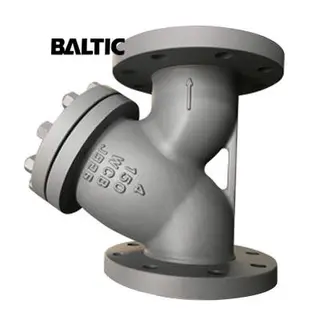

ASTM A216 WCB Y Strainer, 4IN, CL150, RF Ends, ASME B16.34

ASTM A216 WCB Y Strainer, 4IN, CL150, RF Ends, ASME B16.34

Request a quote

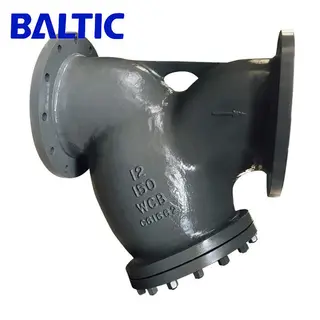

Y Style Strainer, ASTM A216 WCB, 12 Inch, 150 LB, ASME B16.34, RF

Y Style Strainer, ASTM A216 WCB, 12 Inch, 150 LB, ASME B16.34, RF

Request a quote

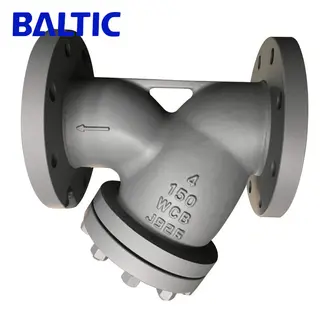

ASME B16.34 Y Strainer, ASTM A216 WCB, 4 Inch, 150 LB, RF Flanged
