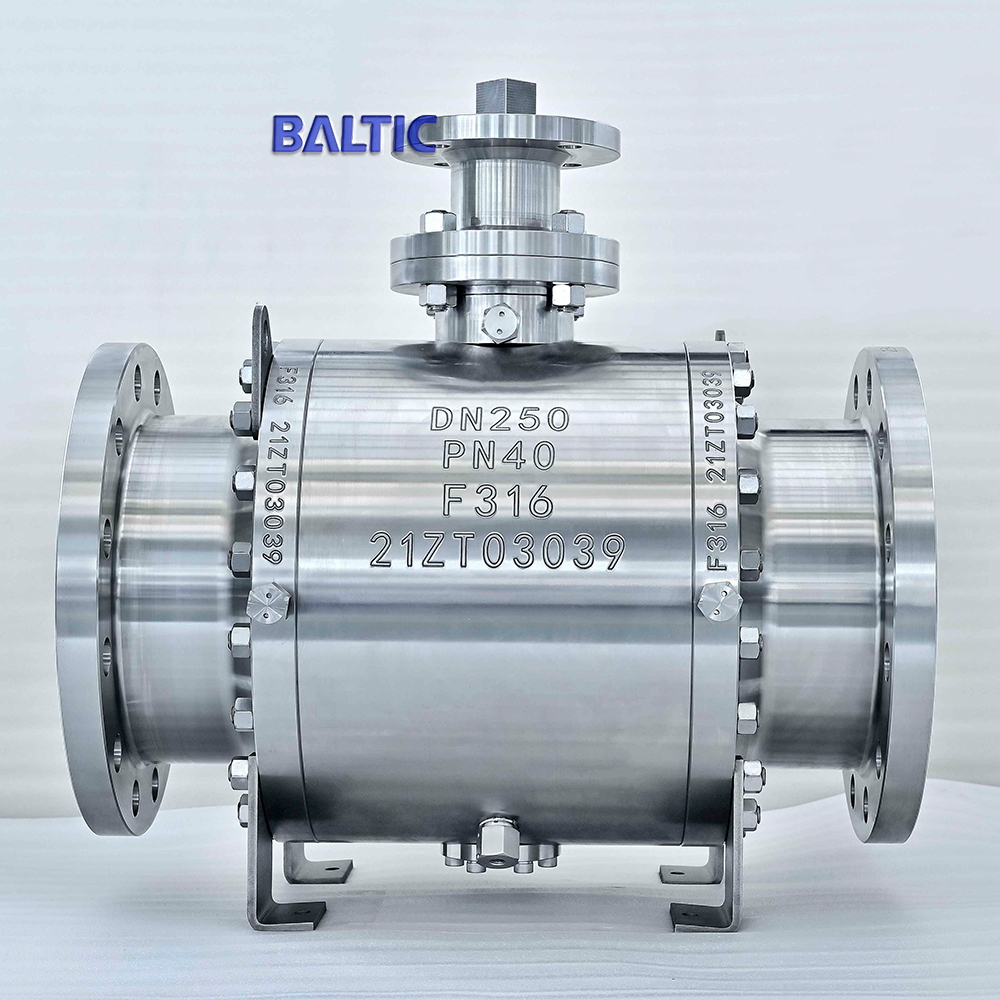

Side Entry Trunnion Ball Valve, API 6D, F316, DN250, PN40

This Side Entry Trunnion Ball Valve is engineered to API 6D standards with a durable ASTM A182 F316 stainless steel body, ensuring excellent corrosion resistance and long-lasting performance in demanding applications. Designed for DN250 (10-inch) pipelines and rated PN40, it provides reliable flow control and tight shut-off under moderate pressure conditions. The valve features RF flanged ends for secure connections and easy installation. Ideal for chemical, petrochemical, and industrial pipelines, its side-entry design allows for convenient maintenance and servicing. As a leading Side Entry Trunnion Ball Valve supplier in China, we deliver high-quality, precision-engineered solutions for critical systems.


Tags:

• Side Entry Ball Valve
• Trunnion Mounted Ball Valve
• API 6D Ball Valve
• ASTM A182 F316 Ball Valve
• DN250 Ball Valve
• PN40 Ball Valve

Valve Description:
Ball valve with ISO top flange for later mounting of an electric actuator.
Design: API 6D.
Body: ASTM A182 F316.
Nominal Size: DN250.
Nominal Class: PN40.
End Connection: RF Flange, EN 1092-B1.
Face to Face: EN 558-1/row 1 = 730mm.
Test and inspection: EN 12266-1.

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 1/2 - 60 Inch (DN15 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16 - PN420).
Working Temperature: -46°C - +200°C.
