Are you looking for a reliable Gearbox Operated Gate Valve Manufacturer? Look no further! Our company offers top-quality gate valves designed for efficiency and durability. This specific valve model features a 10-inch size, 150 LB and DN250 pressure ratings, PN20 pressure class, a flexible wedge design, and conforms to API 600 standards. It is equipped with an RF Flange and boasts a full bore design, ensuring smooth and uninterrupted flow. The valve also features a pressure seal bonnet type, providing optimal sealing capabilities. Trust our expertise for all your gate valve needs. Contact us today for more information!

Tags:

• 10 Inch Gate Valve
• Class 150 LB Gate Valve
• Flexible Wedge Gate Valve
• DN250 Gate Valve
• PN20 Gate Valve
• API 600 Gate Valve
• RF Gate Valve
• Full Bore Gate Valve

Valve description:

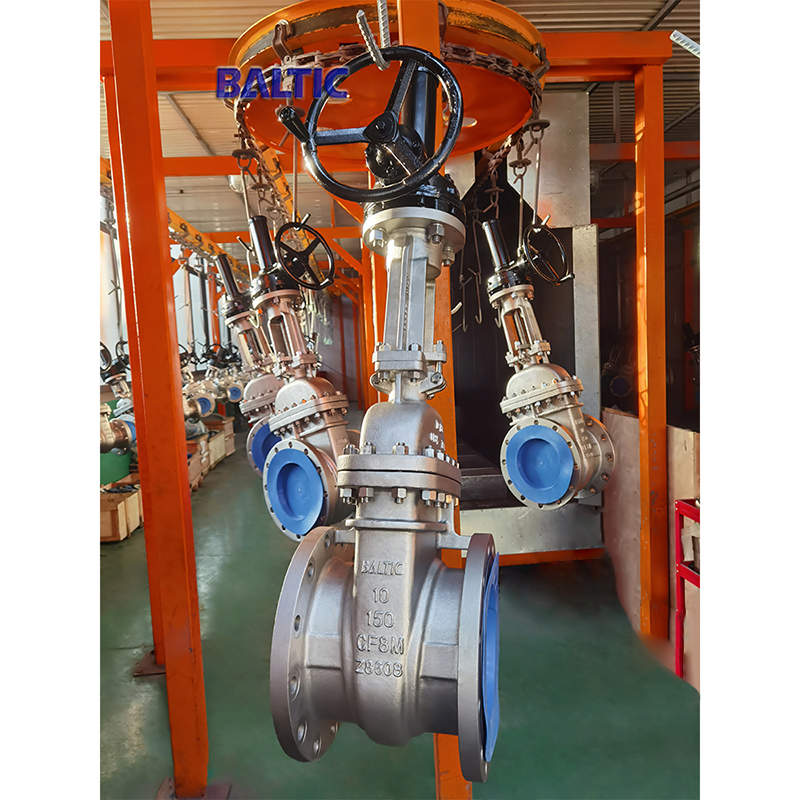

Product name: Flexible wedge gate valve, gearbox operated, class 150 series.
Design: API 600.
Material: ASTM A351 CF8M.
Nominal size: 10 Inch.
Nominal class: 150 LB.
Connection ends: RF flange - ASME B16.5.
Face to face: ASME B16.10.
Test and inspection: API 598.

Other features
Bolted bonnet type or pressure seal bonnet
Flexible wedge, full bore
For pressure seal bonnet type:
The bonnet gasket to be metal sealing, RTJ ring - SS 304 for a long service.
Threaded stem does not contact the medium, to avoid possibility of corrosion

Technical Parameters and Characteristics
Product type: Gate valve.
Size range: NPS 2 - 60 Inch, DN50 - DN1500.
Design pressure: class 150 - 2500 LB, PN10 - PN420.
Design standard: API 600, ASME B16.34, EN 1984, DIN 3352.
Design temp.:  -196℃  -  573℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Operation: Hand wheel, gearbox, electric
Application: electric power, petroleum refining, petrochemical engineering,
offshore oil, chemical engineering
