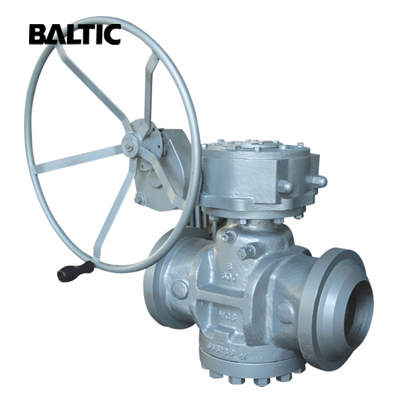

• API 6D Pressure Balanced Plug Valve, A217 WC6, 8IN CL600 BW

API 6D Pressure Balanced Plug Valve, A217 WC6, 8IN CL600 BW

API 6D Pressure Balanced Plug Valve, A217 WC6, 8IN CL600 BW

Short Description

Model No.: 1-3 Hits: 25

China pressure balanced plug valve supplier Baltic provides API 6D pressure balanced lubricated plug valve: ASTM A217 WC6, 8IN, CL600, BW End.
Request a quote Share

Key Specifications / Features

Valve description:
Name: pressure balanced lubricated plug valve.
Design: API 6D.
Body: ASTM A217 WC6.
Nominal size: 8 Inch.
Nominal class: 600 LB.
Connection ends: Butt welded ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product  Pressure balance type plug valve
Nominal diameter NPS 2”~24” (DN50~DN600)
Design temp.  -46℃~120℃
Design pressure CLASS 150~1500 (PN20~PN260)
Material A216 WCB, WCC,  A217 WC6, WC9, C5,  A352 LCB, LCC,
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500,
Design standard API 6D, API 599
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation level, worm gear, electric, pneumatic

Application petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1 Option bore pattern: Venturi, Regular, Short, Standard
Function 2 metal to metal seated design
Function 3 Injection grease sealed design (for stem, and seats)
Function 4 fire safe
