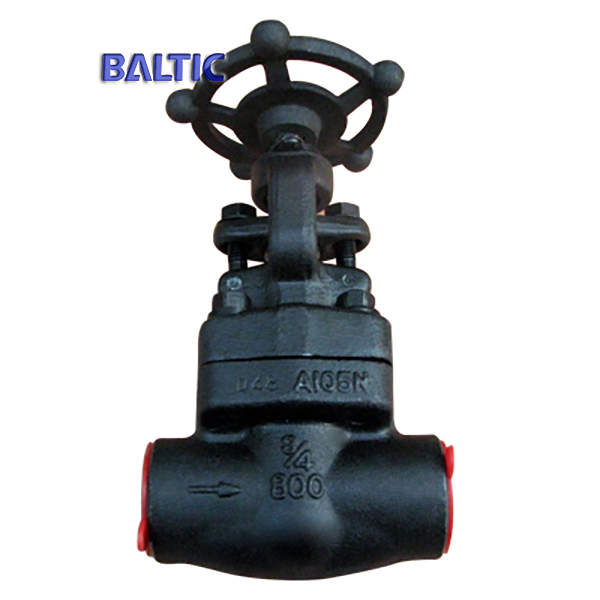

API 602 Full Bore Globe Valve, 3/4 Inch, 800 LB, NPT X SW

Key Specifications / Features

Model No.: 1-2 Hits: 656

China API 602 Small Globe Valve Company Baltic Provides API 602 Full Bore Globe Valve, Full Bore, ASTM A105N, 3/4 Inch, 800 LB, NPT X SW Ends.

Request a quote Share

Tags:

Next: API 602 Reduce Bore Globe Valve, A105N, DN15, PN420, BW Ends

Previous: Globe Valve with Regulating Disc, A105N, 1.5IN, CL600, API 602, RF

Detail Information

Valve descriptions
Product: Small size globe valve, full bore.
Design: API 602.
Body: ASTM A105N.
Nominal size: 3/4 Inch.
Nominal class: 800 LB.
Connection ends: NPT X SW.
Face to face: as per manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics

Product	Small size globe valve
Nominal diameter	1/4"-2"
Design temp.	-196℃-593℃
Design pressure	Class 150-2500
Material	Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard	API 602, BS5352
Face to face	Manufacture standard, ASME B16.10
Connection end	NPT, SW, BW, RF, RTJ
Test standard	API 598, ISO 5208
Operation	Hand wheel, electric
Application	Power station, petroleum, tap water engineering, chemical engineering
Function 1	bolted bonnet, welded bonnet, pressure seal bonnet
Function 2	plug disc, needle disc
Function 3	full bore, reduce bore
Function 4	Integral flanged ends、welded on flanged ends
