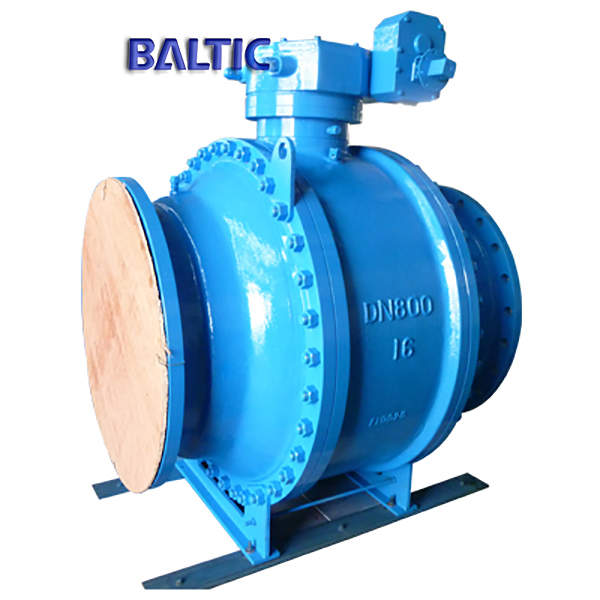

3-PC Trunnion Mounted Ball Valve, Side Entry, GS-C25, DN800 PN16 RF

Key Specifications / Features

Model No.: 1-1 Hits: 113

China 3-PC Trunnion Mounted Ball Valve Factory Supplies Trunnion Mounted Ball Valve, Side Entry, GS-C25 (1.0619), API 6D, DN800, PN16, RF Ends.

Request a quote Share

Tags:

Next: 3-PC Side Entry TM Ball Valve, A105, API 6D, 20 Inch, 600 LB, RF

Detail Information

Valve description:
Name: Side entry trunnion mounted ball valve, 3-PC type.
Design: API 6D.
Body: GS-C25 (1.0619).
Nominal size: DN800.
Nominal class: PN16.
Connection ends: RF flanged ends.
Face to face: as per EN558-1/line 1.
Test and inspection: EN12266-1.

Technical parameters and characteristics

Product	Side Entry Trunnion Mounted Ball Valve
Nominal diameter	2" - 56"	(DN50-DN1400)
Design temp.	-46℃ - 121℃
Design pressure	class 150 - 2500	(PN16-PN420)
Material	WCB, LCB, CF8M, A105, LF2, F316
Design standard	API 6D, ISO 17292
Face to face	ASME B16.10	EN558 series
Connection end	ASME B16.5, ASME B16.25	EN1092-1 series
Test standard	API 598, API 6D	EN 12266-1
Operation	level, worm gear, electric, pneumatic
Application fields	water, petroleum and natural gas
Feature 1	full bore, reduce bore
Feature 2	locking device
Feature 3	anti-blow out stem
Feature 4	fire safe and Anti-static device
Feature 5	DBB / double block and bleed
Feature 6	stem & seats to be equipped injection fitting
