Duplex Stainless Steel Ball Valves
- December 20, 2021
We finished manufacturing some duplex steel ball valves for a client in South America, and the details are as follows:
Product descriptions
API 6D ball valve with hand lever operated
Side Entry, 2-PC type, Bolted Bonnet
Double Block Double Bleed (DBB)
Trunnion mounted, full bore
Anti blow-out proof shaft, venting and drain plug
Fire Safe design: API 607
Anti static device
End connection: RF flange as per AMSE B16.5
Face to face dimension as per ASME B16.10
Testing & Inspection: API 598, leakage A
Medium: H2S
Body: ASTM A182 F51
Stem: ASTM A182 F51
Ball: ASTM A182 F51
Seat ring: A182 F51
Seat Insert: R-PTFE
Spring: INCONEL X750
Item 1) 2 inch - 600LB L= 295MM
If you are interested in the above valves, pls freely contact us via email: [email protected]

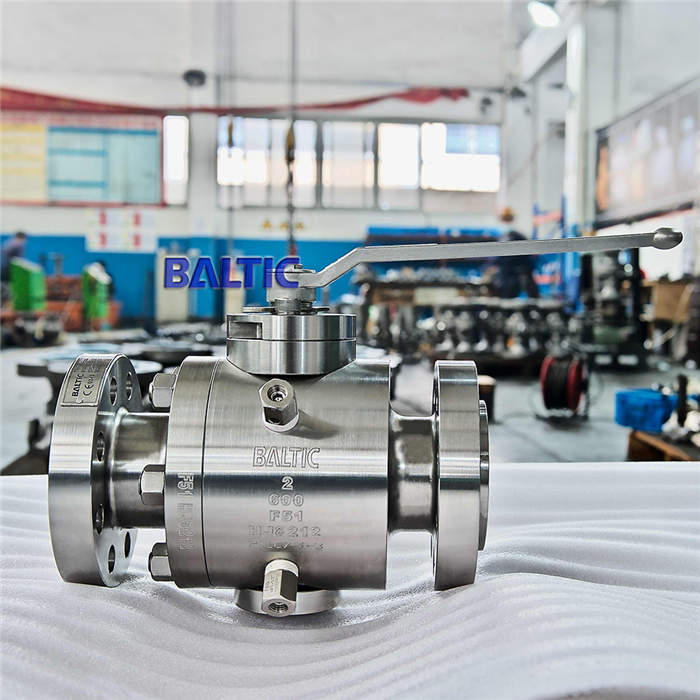

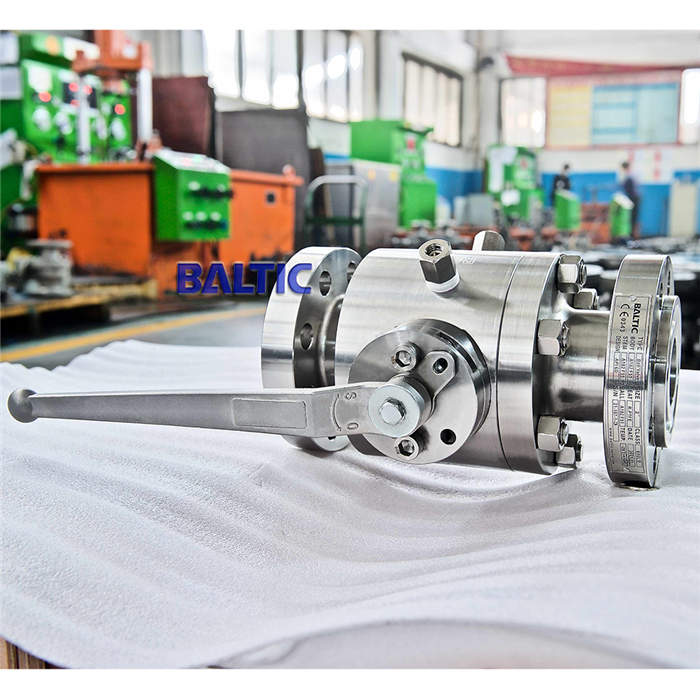

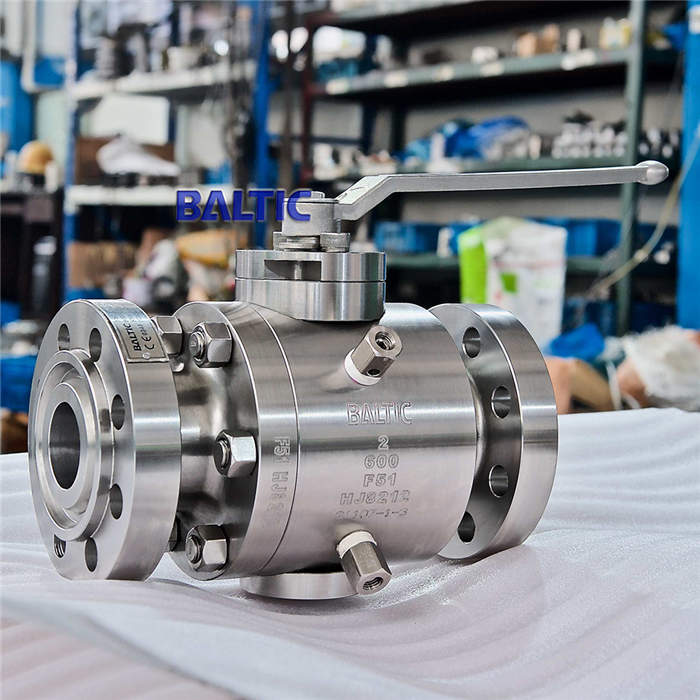

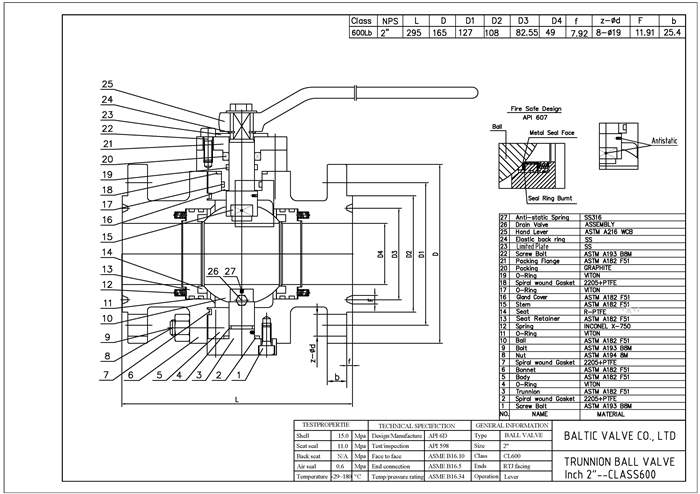

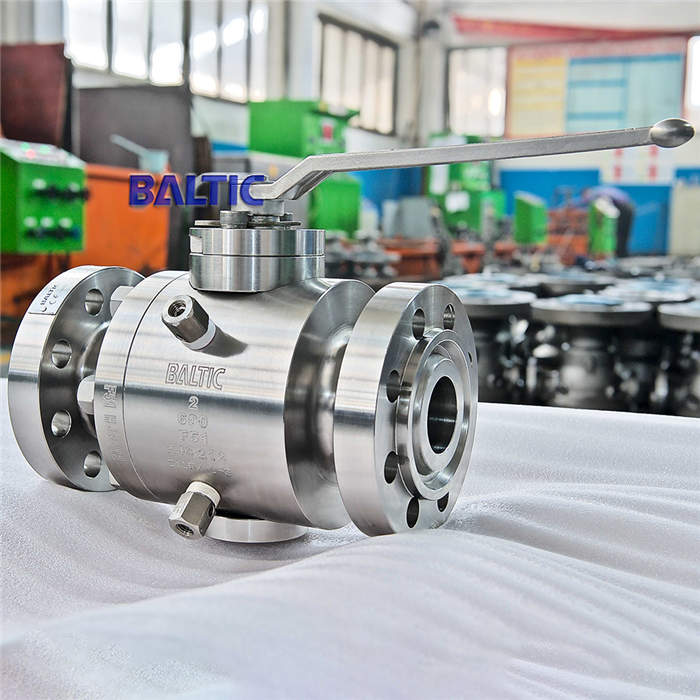

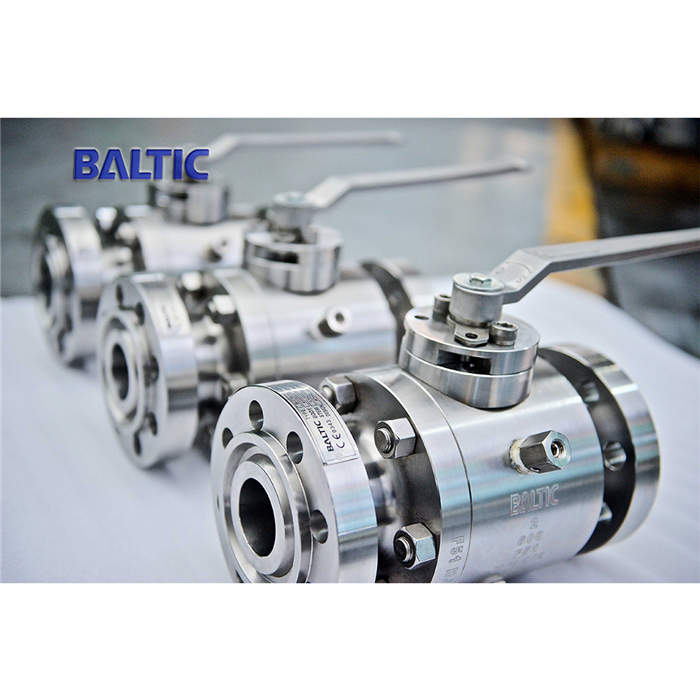

Kindly, please find the attached GA drawing and valve pictures.
BALTIC VALVE CO., LTD
DATED Dec. 17, 2021
