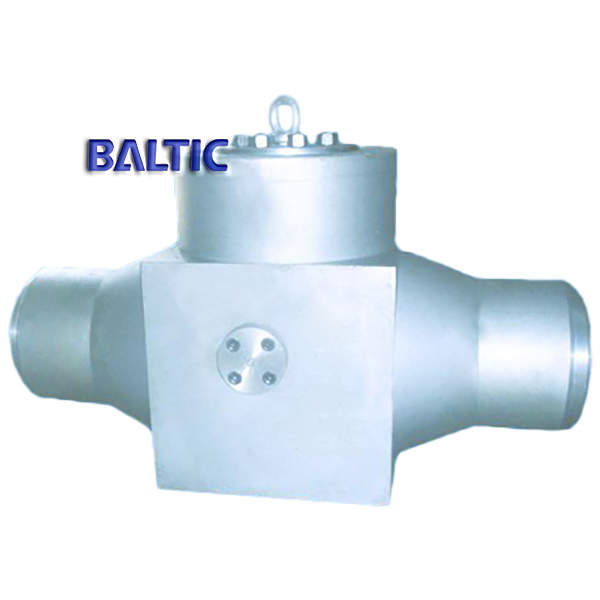

• PSB Tilting Disc Check Valve, A105, 10 Inch, 2500LB, ASME B16.34

PSB Tilting Disc Check Valve, A105, 10 Inch, 2500LB, ASME B16.34

PSB Tilting Disc Check Valve, A105, 10 Inch, 2500LB, ASME B16.34

PSB Tilting Disc Check Valve, A105, 10 Inch, 2500LB, ASME B16.34

Key Specifications / Features

Model No.: 1-1 Hits: 122

China PSB Tilting Disc Check Valve Manufacturer Offers PSB Tilting Disc Check Valve: Pressure Seal Bonnet, A105, 10 Inch, 2500LB, ASME B16.34, BW End.
Request a quote Share

Next: BB Tilting Disc Check Valve, A217 C12, 6IN CL300, BS 1868, RF

Detail Information

Valve description:
Name: Tilting disc check valve, pressure seal bonnet (PSB).
Design: ASME B16.34.
Body: ASTM A105.
Nominal size: 10 Inch.
Nominal class: Class 2500.
Connection ends: butt welded ends.
Face to face: as per ASME B16.10-short length.
Test and inspection: API 598.

Technical parameters and characteristics
Product Titling disc check valve
Nominal diameter NPS 2”～24”
Design temp.  -196℃ ～ 593℃
Design pressure class 150 ～ 2500 PN 16 ～ PN420
Material A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC,
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500
Design standard ASME B16.34, BS 1868
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation NO
Application electric power, petroleum refining, petrochemical engineering,
offshore oil, , chemical engineering
Function 1 Titling disc
Function 2 Bolted cover, pressure seal bonnet
Function 3 Inside of shaft/ outside of shaft
Function 4 Outside of shaft: could be mounted lever + counterweight
Function 5 Large size of check valve could be mounted hydraulic damping cylinder
