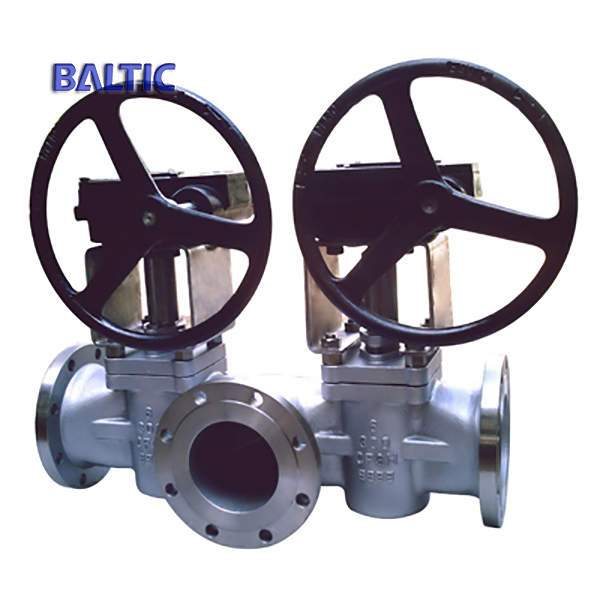

• Sleeved Soft Sealing Plug Valve, ASTM A351 CF8M, 6 Inch, 300 LB

Sleeved Soft Sealing Plug Valve, ASTM A351 CF8M, 6 Inch, 300 LB

Sleeved Soft Sealing Plug Valve, ASTM A351 CF8M, 6 Inch, 300 LB

Sleeved Soft Sealing Plug Valve, ASTM A351 CF8M, 6 Inch, 300 LB

Key Specifications / Features

Model No.: 1-1 Hits: 88

China sleeved soft sealing plug valve factory Baltic provides ASTM A351 CF8M sleeved type soft sealing plug valve, 6 Inch, 300 LB, API 6D, RF end.
Request a quote Share

Next: Soft Sealing Plug Valve, 6IN, CL150, ASTM A351 CF8M, API 6D, RF

Detail Information

Valve description:
Name: sleeve type soft sealing plug valve(DBB type).
Design: API 6D.
Body: ASTM A351 CF8M.
Nominal size: 6 Inch.
Nominal class: 300 LB.
Connection ends: RF X RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product  Sleeve type soft sealing plug valve
Nominal diameter NPS 2”～24” (DN50～DN600)
Design temp.  -46℃～120℃
Design pressure CLASS 150～1500 （PN20～PN260）
Material A216 WCB, WCC, A352 LCB, LCC
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500,
Design standard API 6D, API 599
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation level, worm gear, electric, pneumatic
Application petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1 Option bore pattern: Venturi, Regular, Short, Standard
Function 2 metal to metal seated design
Function 3 Injection grease sealed design (for stem, and seats)
Function 4 fire safe
Function 5 Integral seat ring
