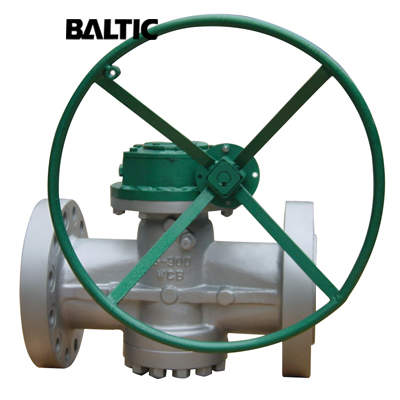

Pressure Balanced Plug Valve, ASTM A216 WCB, 3 Inch, 900 LB, RTJ

Pressure Balanced Plug Valve, ASTM A216 WCB, 3 Inch, 900 LB, RTJ

Short Description

Model No.: 1-2 Hits: 45

China pressure balance plug valve manufacturer Baltic supplies ASTM A216 WCB pressure balance plug valve: 3 Inch, class 900 LB, API 6D, RTJ Ends.
Request a quote Share

Key Specifications / Features

Valve description:
Name: pressure balance lubricated plug valve
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 3 Inch.
Nominal class: 900 LB.
Connection ends: RTJ flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product  Pressure balance type plug valve
Nominal diameter NPS 2”~24” (DN50~DN600)
Design temp.  -46℃~120℃
Design pressure CLASS 150~1500 (PN20~PN260)
Material A216 WCB, WCC,  A217 WC6, WC9, C5,  A352 LCB, LCC,
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500,
Design standard API 6D, API 599
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation level, worm gear, electric, pneumatic

Application petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1 Option bore pattern: Venturi, Regular, Short, Standard
Function 2 metal to metal seated design
Function 3 Injection grease sealed design (for stem, and seats)
Function 4 fire safe
