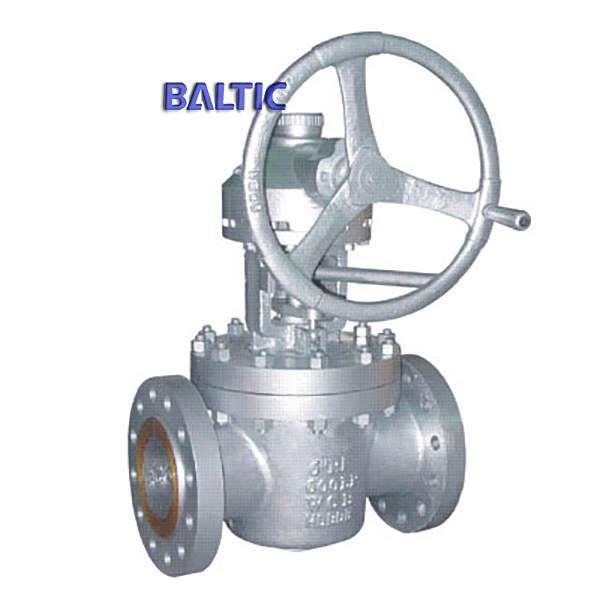

• Lift Plug Valve, ASTM A216 WCB, 8 Inch, Class 600 LB, API 6D, RF

Lift Plug Valve, ASTM A216 WCB, 8 Inch, Class 600 LB, API 6D, RF

Lift Plug Valve, ASTM A216 WCB, 8 Inch, Class 600 LB, API 6D, RF

Lift Plug Valve, ASTM A216 WCB, 8 Inch, Class 600 LB, API 6D, RF

Key Specifications / Features

Model No.: 1-1 Hits: 278

China Lift Plug Valve factory Baltic provides Lift Type Plug Valve, ASTM A216 WCB valve body, 8 Inch, Class 600 LB, API 6D, RF, FF ASME B16.10.
Request a quote Share

Detail Information

Valve description:
Name: Lifting Type Plug Valve.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 8 Inch.
Nominal class: 600 LB.
Connection ends: RF X RF.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Lifting type plug valve
Nominal diameter NPS 2”～24” (DN50～DN600)
Design temp.  -46℃～120℃
Design pressure CLASS 150～600 （PN20～PN100）
Material A216 WCB, WCC, A352 LCB, LCC
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500,
Design standard API 6D, API 599
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation level, bevel gear, electric
Application petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1 full port or reduce port
Function 2 Frictionless sealing structure
Function 3 fire safe design
Function 4 Anti-static design
Function 5 Metal seat, high temperature resistance
