• Cast Iron Basket Strainer, 50A, CL125, JIS, FF Flanged Ends

Cast Iron Basket Strainer, 50A, CL125, JIS, FF Flanged Ends

Cast Iron Basket Strainer, 50A, CL125, JIS, FF Flanged Ends

Cast Iron Basket Strainer, 50A, CL125, JIS, FF Flanged Ends

Key Specifications / Features

Model No.: 1-3 Hits: 261

China Cast Iron Basket Strainer Factory Baltic Offers Cast Iron Basket Type Strainer, 50A, Nominal Class 125 LB, JIS Design, FF Flanged Ends.
Request a quote Share

Next: ASTM A352 LCC Basket Strainer, 2 Inch, 150 LB, ASME B16.34, RF

Previous: WPB Basket Type Strainer, 2 Inch, Class 300, ASME B16.34, RF

Detail Information

Valve description:
Name: Basket type strainer.
Design: Japanese (JIS).
Body: cast iron.
Nominal size: 50A.
Nominal class: CL125.
Connection ends: FF Flanged ends.
Face to face: Japanese (JIS).
Test and inspection: API 598.

Technical parameters and characteristics
Product Basket type strainer
Nominal diameter NPS 2”～24” DN50～DN600
Design temp.  -196℃ ～ 593℃
Design pressure class 150 ～ 600 PN 10 ～ PN100
Material A216 WCB, WCC; A217 WC6, WC9, C5; A352 LCB, LCC;
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M;
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN);
ASTM B 148 C95800, C95500
Design standard ASME B16.34
Face to Face ASME B16.10, manufacture standard
Connection end RF, RTJ, BW
Test standard API 598
Operation
Application Petroleum, chemical, water supply and drainage, water treatment
Function 1 On-line repair + maintenance
Function 2 with a plug drain
Function 3 2-layer screen, strong enough, not damage
Function 4 bolted cover, bonnet gasket: SS + graphite (spiral wound)

Similar Products

WPB Basket Type Strainer, 2 Inch, Class 300, ASME B16.34, RF

WPB Basket Type Strainer, 2 Inch, Class 300, ASME B16.34, RF

Request a quote

WCB Basket Strainer, ASME B16.34, 16 Inch, Class 150, RF Ends

WCB Basket Strainer, ASME B16.34, 16 Inch, Class 150, RF Ends

Request a quote

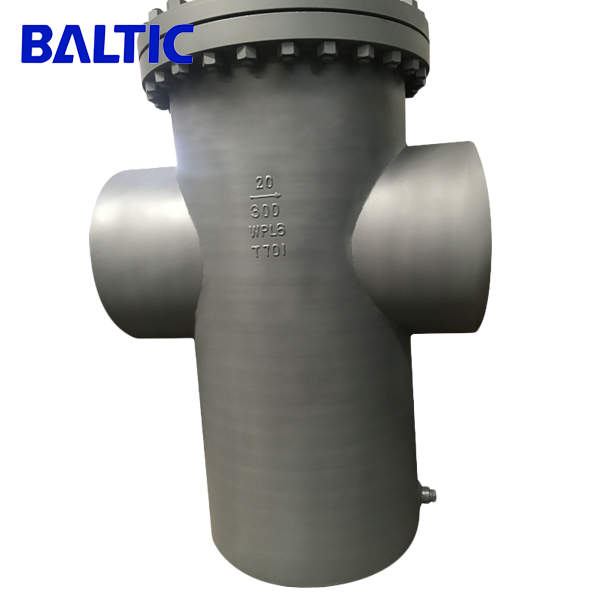

ASTM A420 WPL6 Basket Type Strainer, 20 Inch, Class 300, RF Flanged
