• Multi-Turn Bevel Gearbox, F20-40, 1400-50000 Nm

BH-1S Series Multi-Turn Bevel Gearbox

BH-1S Series Multi-Turn Bevel Gearbox

BH-1S Series Multi-Turn Bevel Gearbox

Key Specifications / Features

Model No.: BH-1S Hits: 653

China Multi-Turn Bevel Gearbox Manufacturer Offers BH-1S Series Multi-Turn Bevel Gearbox, Flange F20-F60, Output Torque 1400-50000 Nm, Stem 50-180mm.
Request a quote Share

Next: RK & 2CK Series Bevel Gearbox Valve Operator

Previous: BH Series Spiral Bevel Gearbox for Gate & Globe Valve

Detail Information


with flange for connection, ISO F5210
with locking device
Type A Type B Type C

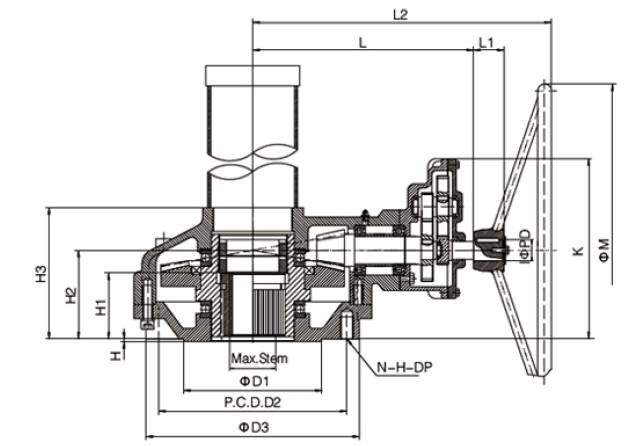

Dimensions:                                                                                                                                                            Unit: mm
MODEL/DIM  BASE PART EXTERNAL PART INPUT  SHAFT  PART Hand wheel
TYPE FLANGE SIZE D1         P.C.D 03 HO H1 H2 H3   L2 L L1 PD KEY M
02 N-H-DP
BH-VS10 A F-10 70 102 4-M10-15 125 3 47 70 104 186 131 36 26 8×7 300
BH-VS20 F-12 85 125 4-M12-18 150 3 49 70 113 195 140
BH-VO F-14 100 140 4-M16-24 175 4 58 78 124 230 165 40 28 8×7    400
BH-V1 F-16 130 165 4-M20-30 210 5 69 85 133 247 182   450

BH-\/2 B F-20 140 205 8-M16-24 250 5 69 87 145 276 202 40 32 10×8 500
BH-V3 F-25 200 254 8-M16-24 300 82 95 159 311 226 47 32 10×8 600
BH-\/35 F-30 230 298 8-M20-30 350 103 133 208 381 296 57 32 10× 8 650
BH-V4 F-35 260 356 8-M30-45 415 146 149 246 437 352 60 38 10× 8 700
BH-V5 F-35 260 356 8-M30-45 415 159 172 276 444 359 51 38 10× 8 700
BH-V6 F-40 300 406 8-M36-54 475 8 174 209 348 461 376 63 50 16×10 800

Technical Data Sheet
MODEL/DIM Gear Ratio Flange Size Max Stem
Diameter		 Max Thrust Capacity Max Output Torque M. A Weight
Input Output
mm KN Nm Nm 士10% Kg
BH -VS10 2.5:1 F-10 22 75 105 220 2.1 9
BH-VS20 3:1 F-12 28 113 140 350 2.5 12
BH-\/0 3:1 F-14 38 127 220 550 2.5 18
BH-V1 3.6:1 F-16 46 141 290 900 3.1 23
BH-\/2 4.1:1 F-20 50 190 375 1300 3.5 34
BH-V3 4.5:1 F-25 60 268 475 1800 3.8 45
BH-\/35 5.2:1 F-30 70 308 640 2800 4.4 83
BH-V4 5.7:1 F-35 90 402 730 3500 4.8 143
BH-V5 6.3:1 F-35           100 528 840 4500 5.4 190
BH-V6 6.3:1 F-40         110 1110 1260 6800 5.4 277

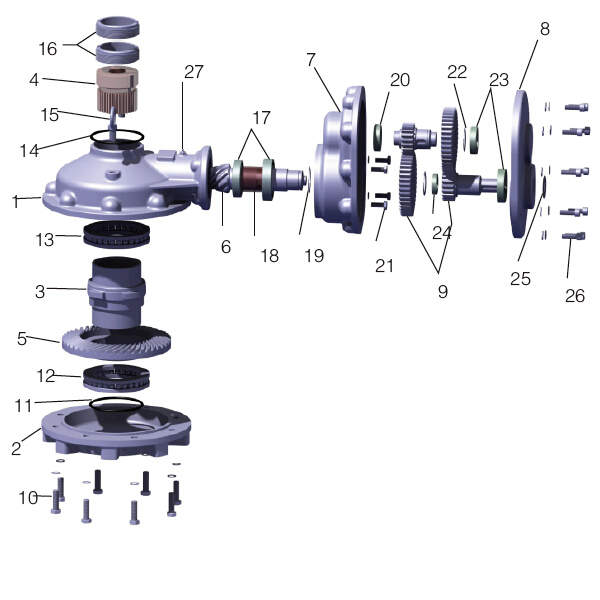

No. Description Material Material code
1 Housing Carbon Steel
Ductile Iron		 ASTM A216 WCB
ASTM A536 65-45-12
2 Base Carbon Steel
Ductile Iron		 ASTM A216 WCB
ASTM A536 65-45-12
3 Drive Sleeve Ductile Iron ASTM A536 65-45-12
4 Stem Nut Brass ASTM C85500
5 Bevel Gear Carbon Steel ASTM A29M-1045
6 Pinion Gear Carbon Steel ASTM A29M-1045
7 Support Housing Carbon Steel
Ductile Iron		 ASTM A216 WCB
ASTM A536 65-45-12
8 Support Cover Carbon Steel
Ductile Iron		 ASTM A216 WCB
ASTM A536 65-45-12
9 Reduction Gear Carbon Steel ASTM A29M-1045
10 Bolt Carbon Steel ASTM A29M-1045
11 O-Ring Rubber NBR
12 Bearing Alloy Steel ASTM A295-52100
13 Bearing Alloy Steel ASTM A295-52100
14 O-Ring Rubber NBR
15 Eye Bolt Carbon Steel ASTM A29M-1020
16 Lock Nut Carbon Steel ASTM A29M-1020
17 Bearing Alloy Steel ASTM A295-52100
18 Collar Carbon Steel ASTM A29M-1020
19 Snap Ring Carbon Steel ASTM A29-1566
20 Bearing Alloy Steel ASTM A295-52100
21 Bolt Carbon Steel ASTM A29M-1045
22 Snap Ring Carbon Steel ASTM A29-1566
23 Bearing Alloy Steel ASTM A295-52100
24 Bearing Alloy Steel ASTM A295-52100
25 O-Ring Rubber NBR
26 Bolt Carbon Steel ASTM A29M-1045
27 Grease Nipple Carbon Steel ASTM A29M-1020
