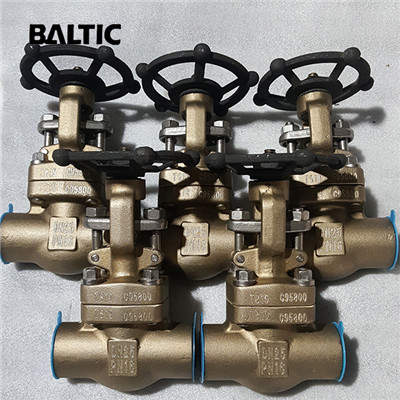

• ASTM B148 C95800 Gate Valve, DN25, PN16, API 602, SW X NPT

ASTM B148 C95800 Gate Valve, DN25, PN16, API 602, SW X NPT

ASTM B148 C95800 Gate Valve, DN25, PN16, API 602, SW X NPT

Short Description

Model No.: 1-A Hits: 7

China ASTM B148 C95800 Gate Valve Supplier Provides ASTM B148 C95800 Gate Valve, Nominal Size DN25, Nominal Class PN16, API 602 Design, SW X NPT Ends.
Request a quote Share

Key Specifications / Features

Valve Description:
Small Size Gate Valve with SW/NPT Ends
Design: API 602
Body: ASTM B148 C95800
Nominal Size: DN25
Nominal Class: PN16
Connection Ends: SW X NPT
Face to Face: Manufacture Standard
Test And Inspection: EN12266-1

Technical parameters and characteristics
Product Small size gate valve
Nominal diameter 1/4”~ 2”
Design temp.  -196℃ ~ 593℃
Design pressure Class 150 ~ 2500
Material Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard API 602, BS5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, RF, RTJ
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, tap water engineering, chemical engineering,
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 solid wedge
Function 3 Full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
