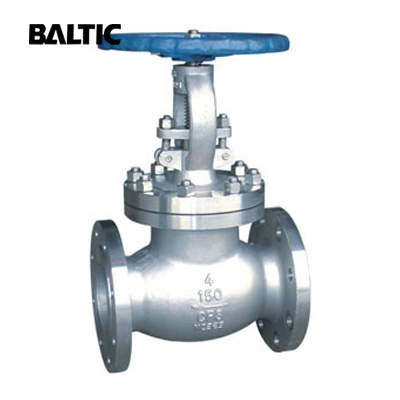

• ASTM A351 CF8 Globe Valve, 4IN, CL150, ASME B16.34, BS 1873, RF

ASTM A351 CF8 Globe Valve, 4IN, CL150, ASME B16.34, BS 1873, RF

ASTM A351 CF8 Globe Valve, 4IN, CL150, ASME B16.34, BS 1873, RF

ASTM A351 CF8 Globe Valve, 4IN, CL150, ASME B16.34, BS 1873, RF

Key Specifications / Features

Model No.: 1-2 Hits: 356

China ASTM A351 CF8 Globe Valve Supplier Baltic Offers ASTM A351 CF8 Globe Valve, 4IN, CL150, ASME B16.34, BS 1873, RF Flanged ends, ASME B16.10.
Request a quote Share

Next: ASTM A217 WC6 Globe Valve, 2 Inch, 900 LB, BS 1873, RF

Previous: ASTM B148 C95800 Globe Valve, 4 Inch, 150 LB, ASME B16.34, RF

Detail Information

Valve description:
Name: Globe Valve.
Design: ASME B16.34, BS 1873.
Body: ASTM A351 CF8.
Nominal size: 4IN.
Nominal class: CL150.
Connection ends: RF Flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Globe valve
Nominal diameter NPS 2”～24” DN50～DN600
Design temp.  -29℃ ～ 593℃
Design pressure class 150 ～ 2500 PN 16～PN420
Material A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500
Design standard BS 1873, ASME B16.34 DIN 3356
Face to Face ASME B16.10 EN558 series
Connection end ASME B16.5, ASME B16.25 EN1092 series
Test standard API 598, ISO 5208 EN12266-1
Operation Hand wheel, bevel gear, electric, pneumatic
Application electric power, petroleum refining, petrochemical engineering, offshore oil,
tap water engineering in urban construction, chemical engineering
Function 1 OS&Y, bolted bonnet, rising stem
Function 2 Short stroke for easy – quick open/close
Function 3 For big size and high pressure: relief cone = internal bypass
Function 4 Disc sealing could be: flat sealing, throttle cone=regulating disc
Function 5 Body seat could be threaded seat or welded seat
