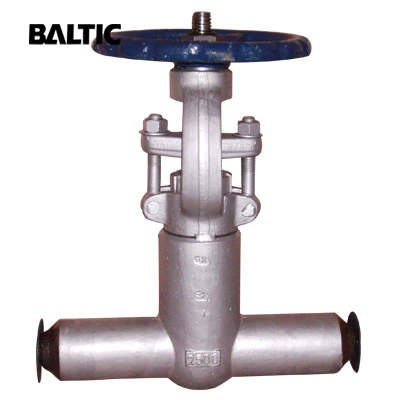

ASTM A182 F11 Gate Valve, API 602, ASME B16.34, 1IN, CL2500, BW

ASTM A182 F11 Gate Valve, API 602, ASME B16.34, 1IN, CL2500, BW

Short Description

Model No.: 2-2 Hits: 45

China ASTM A182 F11 Gate Valve Supplier Baltic Provides Small Size Gate Valve, ASTM A182 F11, API 602, ASME B16.34, 1IN, CL2500, BW Ends.
Request a quote Share

Key Specifications / Features

Valve description:
Name: Small size gate valve.
Design: API 602, ASME B16.34.
Body: ASTM A182 F11.
Nominal size: 1 Inch.
Nominal class: 2500 LB.
Connection ends: butt welded ends.
Face to face: manufacture standard.
Test and inspection: API 598.

Technical parameters and characteristics
Product Small size gate valve
Nominal diameter 1/4” ~ 2”
Design temp.  -196℃ ~ 593℃
Design pressure Class 150 ~ 2500
Material Forged carbon steel, SS, ally steel, duplex SS, nickel based alloy
Design standard API 602, BS5352
Face to face Manufacture standard, ASME B16.10
Connection end NPT, SW, BW, RF, RTJ
Test standard API 598, ISO 5208
Operation Hand wheel, electric
Application Power station, petroleum, tap water engineering, chemical engineering,
Function 1 Bolted bonnet, welded bonnet, pressure seal bonnet
Function 2 solid wedge
Function 3 Full bore, reduce bore
Function 4 Integral flanged ends, welded on flanged ends
