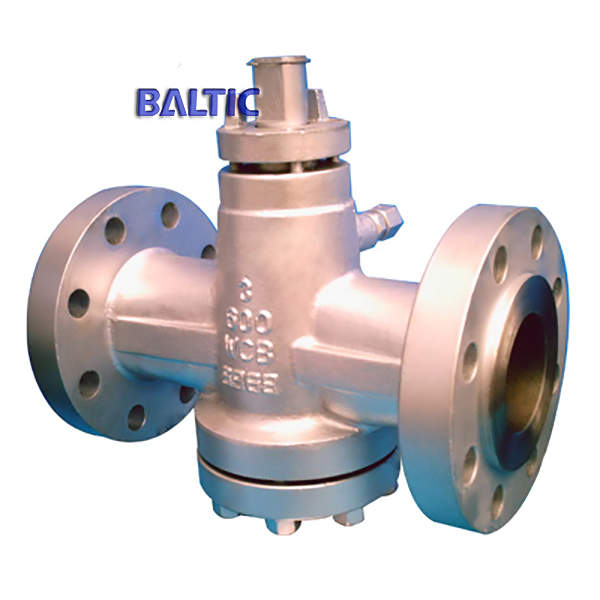

• API 6D Lubricated Plug Valve, ASTM A216 WCB, 3 Inch, Class 600, RF

API 6D Lubricated Plug Valve, ASTM A216 WCB, 3 Inch, Class 600, RF

API 6D Lubricated Plug Valve, ASTM A216 WCB, 3 Inch, Class 600, RF

Short Description

Model No.: 3-2 Hits: 40

China API 6D lubricated plug valve factory Baltic offers API 6D lubricated plug valve, pressure balanced, ASTM A216 WCB Body, 3 Inch, Class 600, RF.
Request a quote Share

Key Specifications / Features

Valve description:
Name: pressure balance lubricated plug valve
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 3 Inch.
Nominal class: 600 LB.
Connection ends: RF Flanged ends.
Face to face: ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product  Pressure balance type plug valve
Nominal diameter NPS 2”~24” (DN50~DN600)
Design temp.  -46℃~120℃
Design pressure CLASS 150~1500 (PN20~PN260)
Material A216 WCB, WCC,  A217 WC6, WC9, C5,  A352 LCB, LCC,
A351 CF8, CF8M, CF3M, CF8C, CN3MN, CN7M,
A890 4A(CD3MN), 5A(CE3MN), 6A(CD3MWCuN),
ASTM B 148 C95800, C95500,
Design standard API 6D, API 599
Face to Face ASME B16.10
Connection end RF, RTJ, BW
Test standard API 598, ISO 5208
Operation level, worm gear, electric, pneumatic

Application petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical
Function 1 Option bore pattern: Venturi, Regular, Short, Standard
Function 2 metal to metal seated design
Function 3 Injection grease sealed design (for stem, and seats)
Function 4 fire safe
