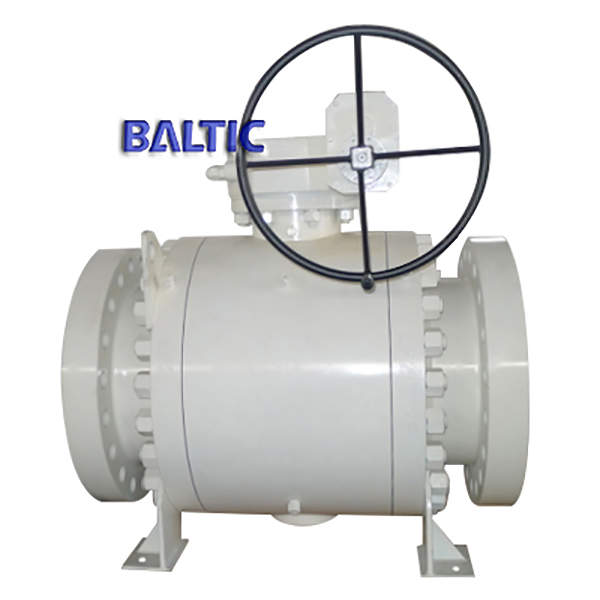

• 3PC SE TM Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF

3PC SE TM Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF

3PC SE TM Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF

3PC SE TM Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF

Key Specifications / Features

Model No.: 1-3 Hits: 101

China 3PC SE TM Ball Valve Manufacturer Offers 3PC Side Entry Trunnion Mounted Ball Valve, ASTM A182 LF2, 10IN, CL300, API6D, RF Ends, FF ASME B16.10.
Request a quote Share

Next: 2-PC Trunnion Ball Valve, A216 WCB, API 6D, 8 Inch, 600 LB, RF

Previous: 3-PC Side Entry TM Ball Valve, A105, API 6D, 20 Inch, 600 LB, RF

Detail Information

Valve description:
Name: Side entry trunnion mounted ball valve, 3-PC type.
SE=Side Entry, TM=Trunnion Mounted.
Design: API 6D.
Body: ASTM A182 LF2.
Nominal size: 10 Inch.
Nominal class: class 300.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.

Technical parameters and characteristics
Product Side Entry Trunnion Mounted Ball Valve
Nominal diameter 2" - 56" (DN50-DN1400)
Design temp. -46℃ - 121℃
Design pressure class 150 - 2500 (PN16-PN420)
Material WCB, LCB, CF8M, A105, LF2, F316
Design standard API 6D, ISO 17292
Face to face ASME B16.10 EN558 series
Connection end ASME B16.5, ASME B16.25 EN1092-1 series
Test standard API 598, API 6D EN 12266-1
Operation level, worm gear, electric, pneumatic
Application fields water, petroleum and natural gas
Feature 1 full bore, reduce bore
Feature 2 locking device
Feature 3 anti-blow out stem
Feature 4 fire safe and Anti-static device
Feature 5 DBB / double block and bleed
Feature 6 stem & seats to be equipped injection fitting
